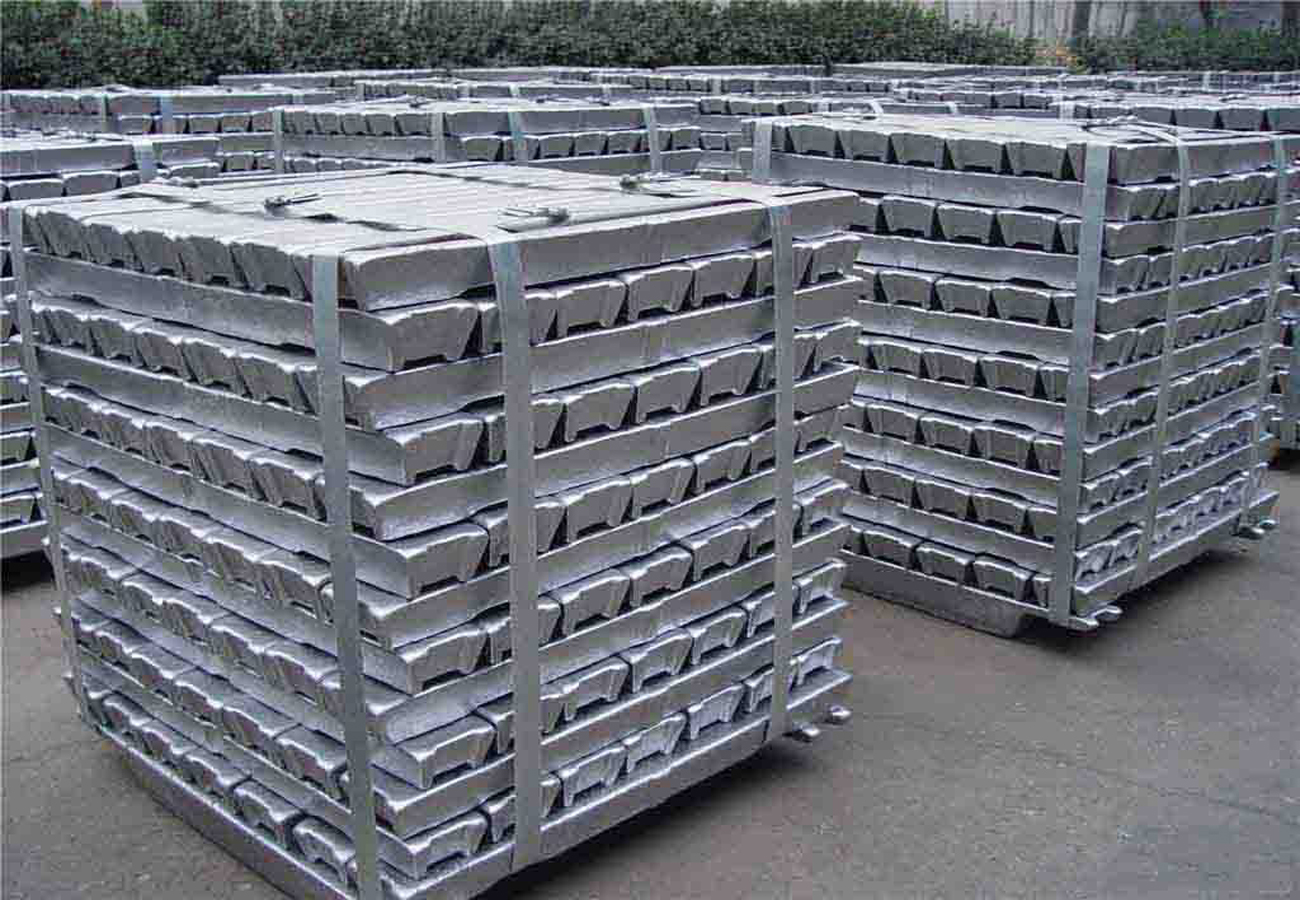

Aluminum Alloy Ingots are ingots in which aluminium (Al) is the predominant metal. The typical alloying elements are copper, magnesium, manganese, silicon and zinc.
Aluminium alloys are widely used in engineering structures and components where light weight or corrosion resistance is required. We manufacture wide range of Aluminum Alloy and we our specialization in LM series and ADC 12.
| Material | Aliuminium |
|---|---|
| Anodised | Yes |
| Finish | Polished |
| Hardness | 40 to 90 A |
| Purity | 99.7% |
| Shape | Bar-shaped |
| ALLOY | Si | Fe | Cu | Mn | Mg | Zn | Ni | Cr | Pb | Sn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ADC-12 | 9.60 - 12.00 | 0.9 | 1.50-3.50 | 0.5 | 0.3 | 1 | 0.5 | 0.3 | 0.3 | 0.15 | Bal | |
| LM-24 | 7.50 - 9.50 | 1.3 | .00-4.00 | 0.5 | 0.3 | 3 | 0.5 | 0.3 | 0.2 | 0.2 | Bal | |
| LM-6 GENERAL | 10.00 - 13.00 | 0.6 | 0.1 | 0.5 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | 0.2 | Bal | |
| LM-10 | 0.25 | 0.35 | 0.1 | 0.1 | 9.60-11.00 | 0.1 | 0.1 | 0.05 | 0.05 | Bal | ||
| AC4B | 7.00 - 8.00 | 0.5 | 2.30-2.80 | 0.5 | 0.30-0.50 | 0.2 | 0.35 | 0.2 | 0.2 | 0.1 | 0.2 | Bal |
| ADC-6 | 1 | 0.8 | 0.1 | 0.40-0.60 | 2.50-4.00 | 0.4 | 0.1 | 0.1 | Bal | |||
| LM-9 | 10.00 - 13.00 | 0.6 | 0.1 | 0.30-0.70 | 0.20-0.60 | 0.1 | 0.1 | 0.2 | Bal | |||
| AC4C | 6.5-7.5 | < 0.55 | < 0.25 | < 0.35 | 0.25-0.45 | < 0.35 | < 0.1 | < 0.1 | < 0.1 | < 0.05 | < 0.2 | Bal |
| AlSi9Cu3 | 8.00-11.00 | 0.8 | 2.0-3.5 | 0.1-0.5 | 0.1-0.5 | 1.2 | 0.3 | 0.2 | 0.1 | 0.15 | Bal |
